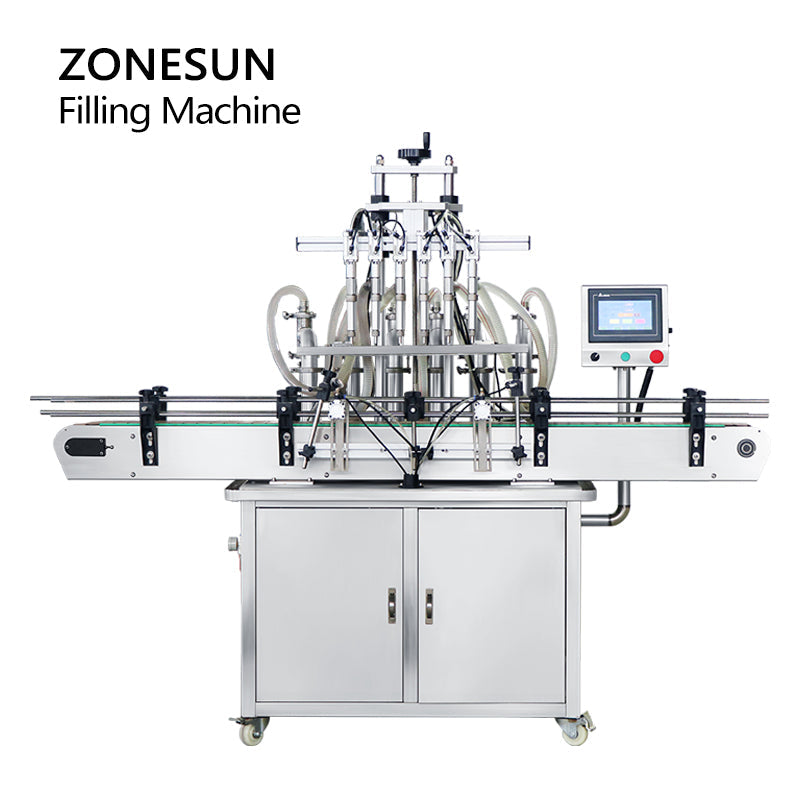

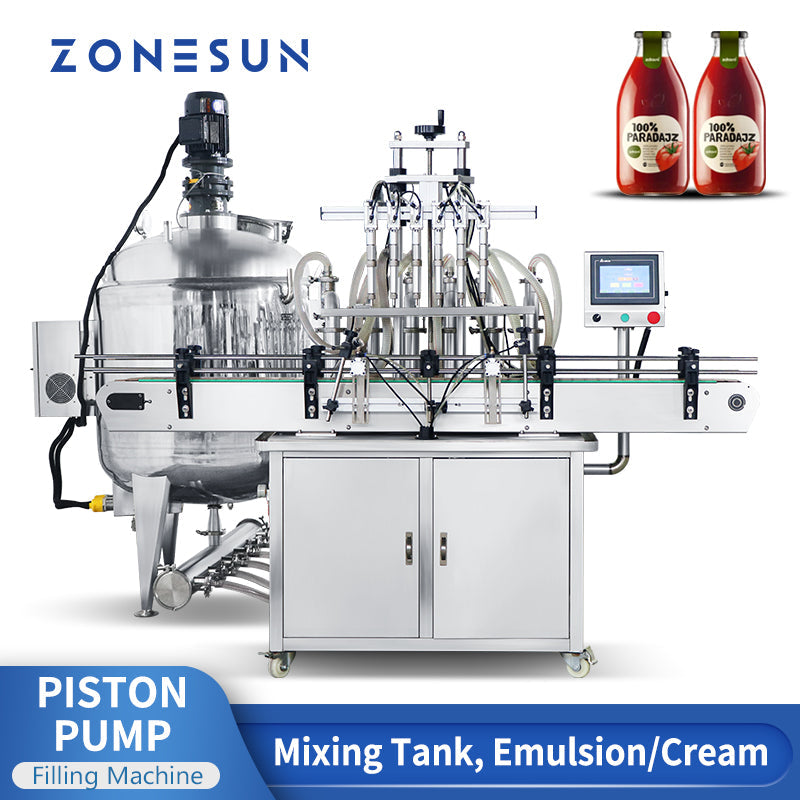

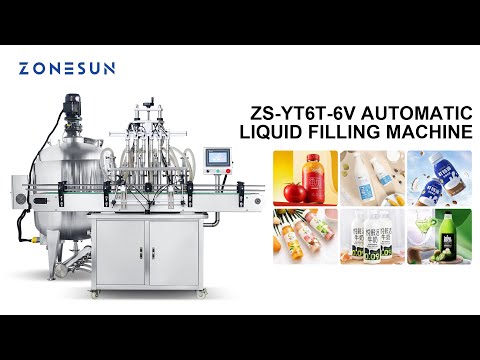

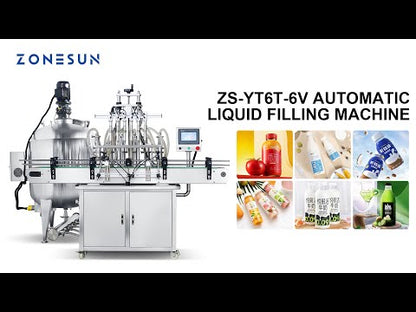

ZONESUN ZS-YT6T-6V 6-Head Piston Pump Liquid Filler with 400L Heating Mixing Tank for Cream Paste Cosmetic
ZONESUN ZS-YT6T-6V 6-Head Piston Pump Liquid Filler with 400L Heating Mixing Tank for Cream Paste Cosmetic
Couldn't load pickup availability
Description
The ZONESUN ZS‑YT6T‑6V Automatic Piston Pump Liquid Filling Machine is engineered for precision, efficiency, and versatility in handling both liquids and viscous products. Equipped with a mixing tank, it can emulsify liquids and maintain uniform product consistency during filling. The piston pump system delivers strong, accurate, and repeatable dosing, making it suitable for filling pastes, creams, lotions, gels, and other high‑viscosity materials. With six filling heads, it significantly boosts production capacity while ensuring filling accuracy of ≤±1%. Its combination of electric and pneumatic operation provides stable performance, and the adjustable settings make it adaptable for various bottle sizes and shapes.
PARAMETER
Filling Machine
| Model | ZS-YT6T-6Y |
|---|---|
| Voltage | 110/220V 50-60HZ 800W |
| Filling Range | 5-100ml / 10-300ml / 50-500ml / 100-1000ml / 500-3000ml / 1000-5000ml |
| Working Speed | 30-40bottles/min |
| Filling Accuracy | ≤±1% |
| Air Pressure | 0.5-0.7MPa |
| Size Of Air Compressor Connector | φ10mm |
| Conveyor Length | 2050mm(standard) / 3050mm(wider version) |
| Conveyor Material | Plastic(standard) / stainless steel(custom version) |
| Package Size | About 2110*2010*1000mm (100-1000ML) |
| Package Weight | About 476kg (100-1000ML) |
Mixing Tank
| Machine Model | ZS-MB400LH |
|---|---|
| Voltage | 220V 50-60Hz |
| Tan Capacity | 400L(Can be customized) |
| Tank Size | Diameter: 800mm, H: 1000mm |
| Stirring Motor | 1.1kW |
| Rotating Speed | 40r/min |
| Heating Power | 12kW |
| Machine Material | 304 Stainless Steel |
| Package Size | About 1300*1100*2160mm |
| Gross Weight | About 403kg |
Applications
The ZONESUN ZS-YT6T-6V versatile filling and mixing system is engineered to meet the stringent packaging requirements of diverse high-demand industries. Thanks to its integrated 400L heating and emulsifying mixing tank and high-precision piston pumps, it handles a wide spectrum of fluid viscosities with ease.
- Cosmetics & Personal Care Industry: Ideal for manufacturing and packaging facial creams, body lotions, liquid foundations, hair gels, shampoos, shower gels, styling waxes, and aloe vera gels. The heating and stirring functions prevent ingredient separation and ensure a smooth, glossy finish for emulsified products.
- Daily Chemical & Household Products: Perfect for dispensing viscous detergents, dishwashing liquids, laundry liquids, surface cleaners, liquid soaps, and floor polishers with consistent volumetric accuracy.
- Food & Beverage Processing: Suitable for filling food condiments, thick sauces, salad dressings, chili paste, honey, concentrated syrups, fruit jams, and chocolate sauces under hygienic conditions (utilizing 304 food-grade stainless steel contact parts).
- Pharmaceutical & Chemical Sectors: Reliable for packaging medical ointments, topical creams, petroleum jelly, industrial lubricants, and viscous chemical adhesives where dosing precision (≤±1%) is critical.
PRODUCT DETAILS

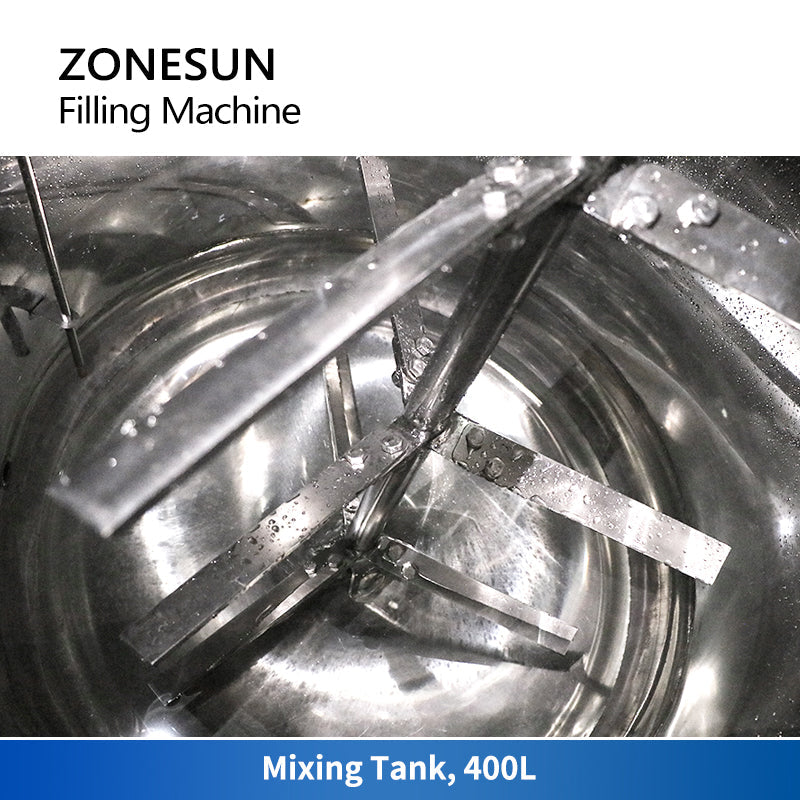

MIXING TANK
400L, customizable paddle, with heating function

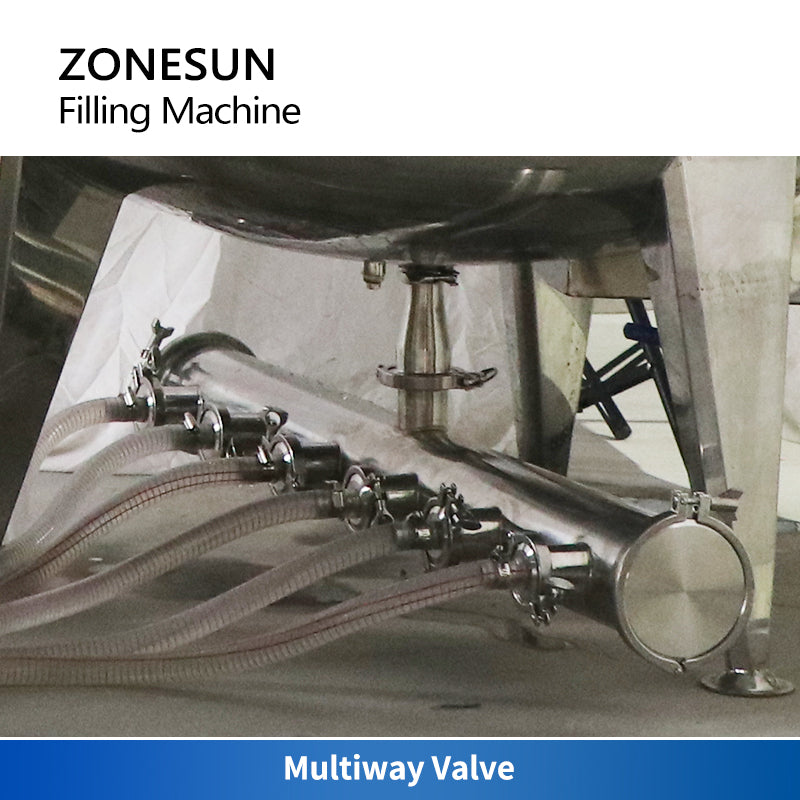

FEEDING
Multiway valve, directly connect to the hoses.

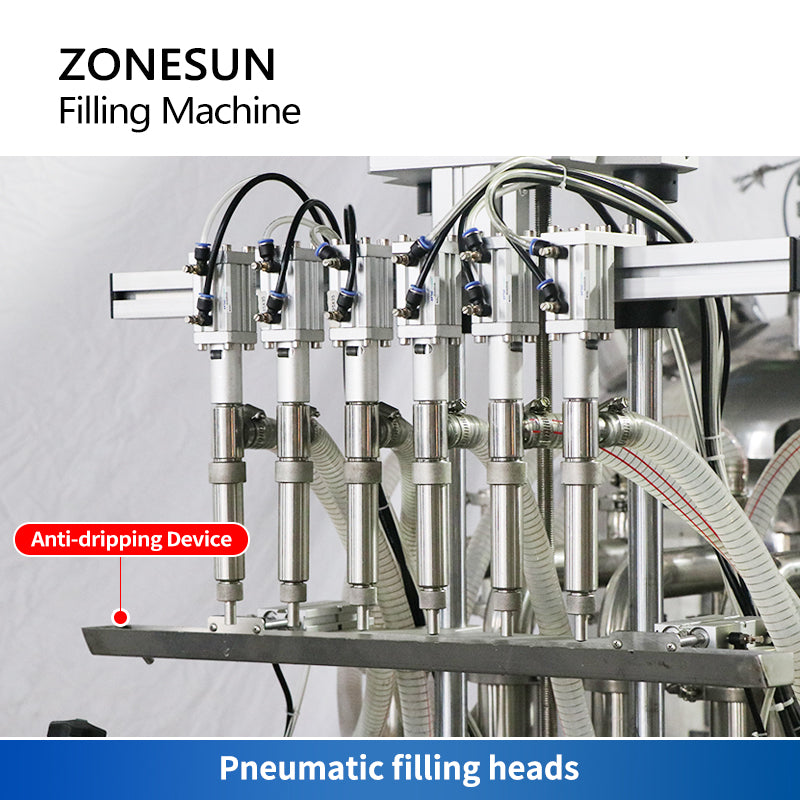

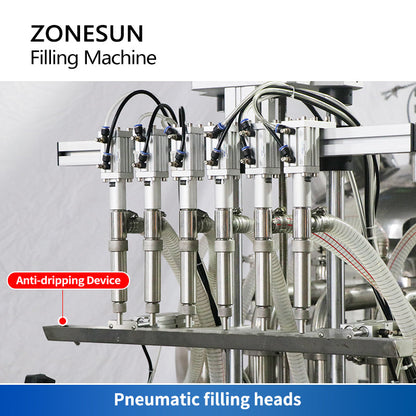

FILLING
Pneumatic filling heads, with an anti-dripping design.

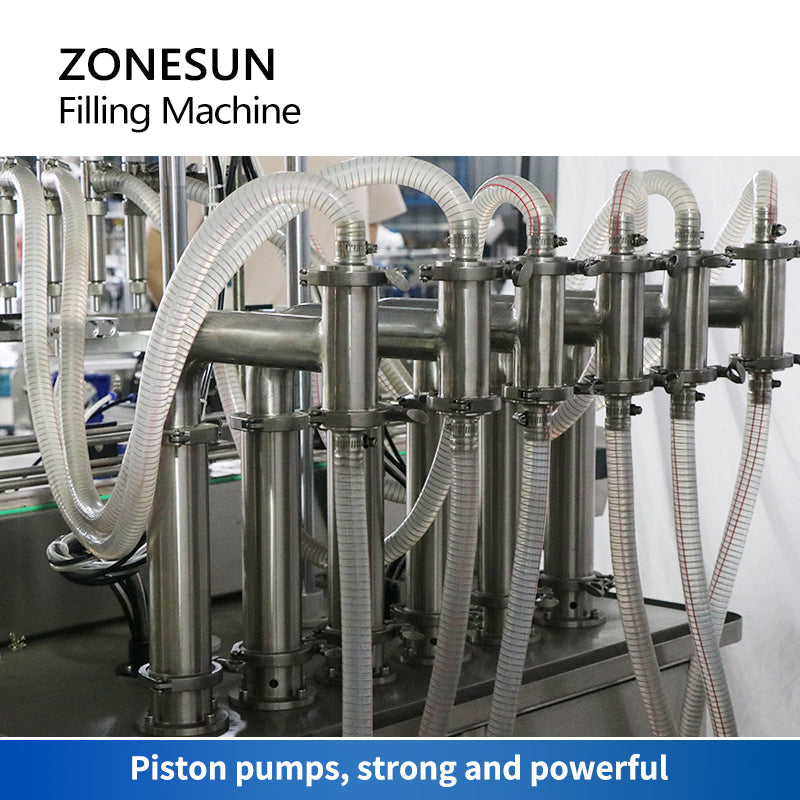

PUMP
Piston pumps, strong and powerful
