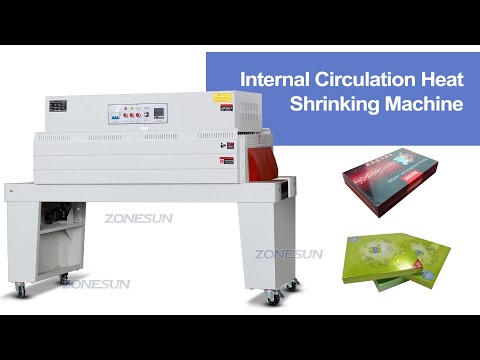

ZONESUN ZS-BSP4522 Automatic Heat Shrink Tunnel Machine for POF/PVC Film Packaging
ZONESUN ZS-BSP4522 Automatic Heat Shrink Tunnel Machine for POF/PVC Film Packaging
Impossibile caricare la disponibilità di ritiro
The ZONESUN ZS-BSP4522 is a high-performance heat shrink tunnel designed for rapid and uniform shrink wrapping using PVC or POF film. Equipped with a powerful hot air circulation system and a top-mounted cold air blower, it ensures consistent shrink results and immediate cooling to prevent warping. With a tunnel size of 1500×450×220mm and adjustable transport speed up to 15m/min, this machine handles packages up to 20kg with ease. Ideal for food, cosmetics, electronics, and retail packaging, it offers reliable performance, minimal maintenance, and seamless integration into automated production lines.
TECHNICAL SPECIFICATIONS
- Machine Model: ZS-BSP4522
- Voltage: 220–380V 50–60Hz
- Power: 15KW
- Film Material: PVC, POF
- Weighing Capacity: 20KG
- Tunnel Size (L×W×H): About 1500×450×220mm
- Transporting Speed: 0–15m/min
- Machine Size (L×W×H): About 1900×710×1260mm
- Machine Weight: About 200kg
Application
- Multi-Pack & Bundling Packaging: Ideal for promotional multi-packs, bundled items, and variety packs, keeping separate products securely held together for retail and logistics.
- Single-Item Tight Wrapping: Ensures a wrinkle-free, snug fit for individual square, round, or uniquely shaped containers and bottles.
- Box & Carton Sealing: Perfect for sealing and protecting medium-to-large gift boxes, tech packaging, books, and retail cartons.
Application Sectors
- Food & Beverage Industry: Bottled water/beverage multi-packs, boxed food products, convenient cup/jar bundles, and snack containers.
- Cosmetics & Daily Chemicals: Pump bottles for body wash, shampoo, and hand sanitizer, as well as outer film shrinking for cosmetics and perfume boxes.
- Stationery & Toy Industry: Toy figurine multi-packs, puzzles, board games, notebooks, and various craft gift items.
- Pharmaceuticals & Health Products: Tamper-evident outer film wrapping for medicine boxes and supplement bottles.
Operation Panel
The simple control panel makes machine operation more convenient.
Heating System
Hot air circulates inside the tunnel to heat products evenly.
High-Temperature Dust-Proof Cloth
Helps protect operators while supporting hot-air circulation inside the tunnel.
Conveyor
The PTFE heat-resistant conveyor accommodates smaller products without damaging the shrink film and is suitable for boxes, trays, and similar packages.
