ZONESUN ZS-AFS320 Automatic Pouch Packaging Machine for Coffee Powder Flour Milk Powder & Fine Spice
ZONESUN ZS-AFS320 Automatic Pouch Packaging Machine for Coffee Powder Flour Milk Powder & Fine Spice
Impossibile caricare la disponibilità di ritiro
Description
The ZONESUN ZS-AFS320 is an automatic premade pouch powder filling and sealing machine designed for efficient, clean, and precise powder packaging. Running at 15-60 pouches per minute, it integrates pouch feeding, opening, filling, sealing, date coding, and product discharge into one compact system. With a vacuum cleaner, auger filler, and temperature-controlled sealing, it ensures accurate dosing and stable pouch handling. It supports customizable pouch sizes, filling ranges, and hopper capacity (feeder can be configured to meet the needs of fully automatic production line). Suitable for flour, protein powder, milk powder, spices, chemical powders, and other free-flowing or semi-free-flowing powders.
Parameter
- Model: ZS‑AFS320
- Voltage: 220 V / 110 V, 50–60 Hz
- Power: 2.5 kW
- Production Speed: About 15–60 pcs/min (depends on pouch size & filling materials)
- Premade Pouch Size: W 80–320 mm × L 110–300 mm
- Filling Range: 50 g–5 kg (customizable)
- Filling Accuracy: ±0.3–1.5%
- Hopper Capacity: 10 L (customizable)
- Sealing Temperature: 100–190 °C
- Air Consumption: 0.7 m³/min
- Air Pressure: 0.6 MPa
- Machine Weight: About 755 kg
- Machine Size (Main Machine): About 2150 × 1200 × 1200 mm(Main Machine)
Applications
- Nutritional & Fitness Powders: Protein powder, collagen powder, meal replacement shakes, and amino acids.
- Coffee & Cocoa: Ground coffee, instant coffee mixes, cocoa powder, and matcha green tea powder.
- Superfood & Herbal Powders: Acai berry powder, maca powder, spirulina, and herbal extracts.
- Baking & Kitchen Staples: Flour, milk powder, powdered sugar, fine spices, and seasoning blends.
- Stand-Up Pouches (Doypack): With secure top reclosable zippers, perfect for multi-serve protein and supplement powders.
- Flat Bottom & Block Bottom Pouches (Gusseted): Ideal for premium whole bean or ground coffee, providing a stable, elegant box-like display.
- Kraft Paper Pouch Laminates: Supports eco-friendly or organic printed brown/white kraft bags for natural lifestyle brands.
- High-Gloss & Matte Finish Mylar Bags: Flawlessly handles aluminum foil liners that seal in freshness and protect against light and moisture.
CONTROL PANEL
Provides an intuitive interface for easy parameter setting and adjustment, with customizable language options.
POUCH HOLDER & FEEDING
Stores premade pouches and uses suction cups to pick, hold, and transfer them smoothly to the next working station.
POUCH OPENING
Uses suction cups to open premade pouches before filling, ensuring smooth pouch handling and stable preparation for the filling-sealing process.
FILLING NOZZLE
Dispenses powder accurately into each pouch with controlled flow, ensuring clean, consistent, and precise filling for the sealing process.

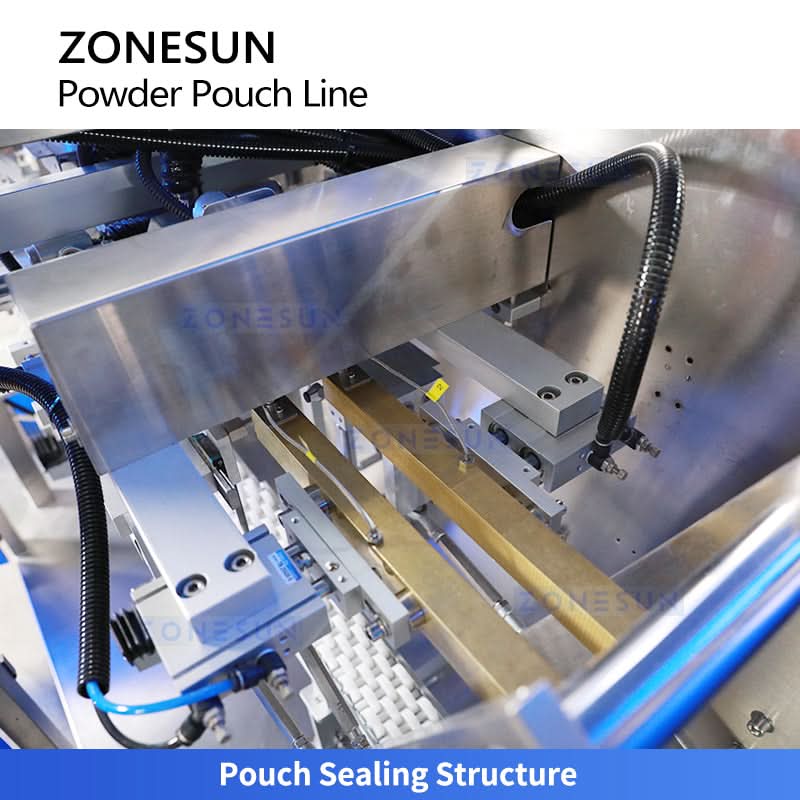

POUCH OPENING
Seal filled pouches securely, ensuring firm, consistent, and leak-proof sealing for reliable packaging quality.
DATE CODING
Prints production dates, batch numbers, or codes onto pouches, ensuring clear, accurate, and traceable product identification.
PRODUCT OUTLET
Transfers sealed pouches smoothly out of the machine, enabling orderly product discharge and easy connection to downstream packing or collection processes.
