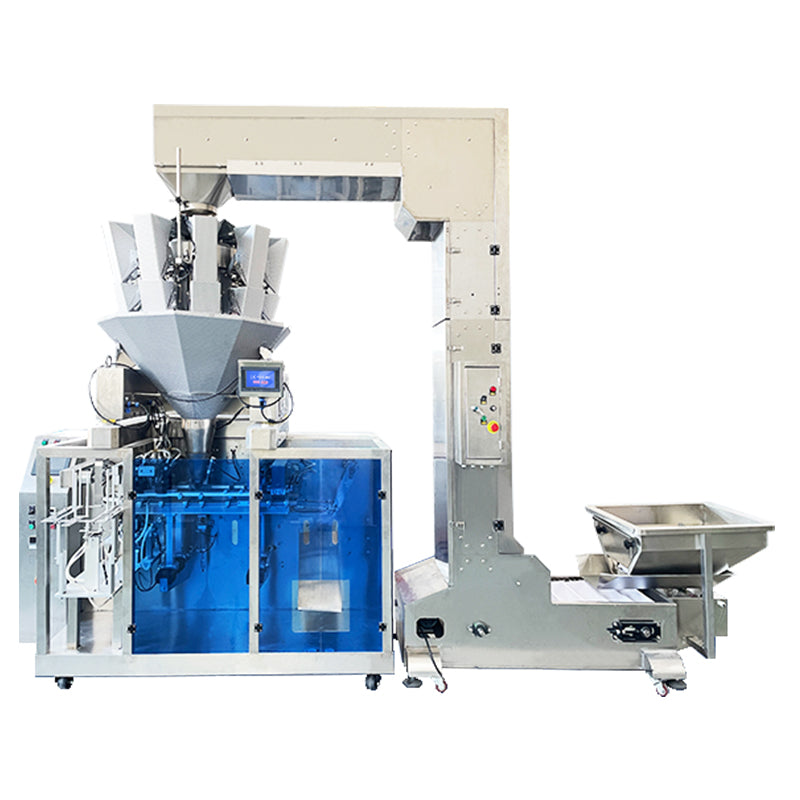

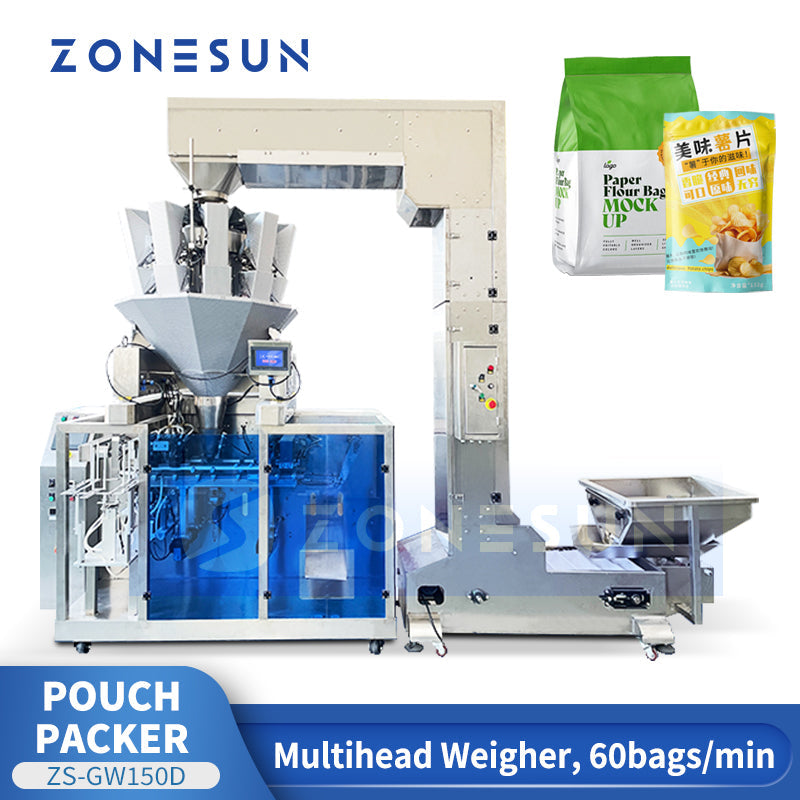

Zonesun ZS‑GW150D Automated Granular Bagging & Packaging System
Zonesun ZS‑GW150D Automated Granular Bagging & Packaging System
Prezzo di listino
$34,999.00 USD
Prezzo di listino
Prezzo scontato
$34,999.00 USD
Prezzo unitario
per
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro

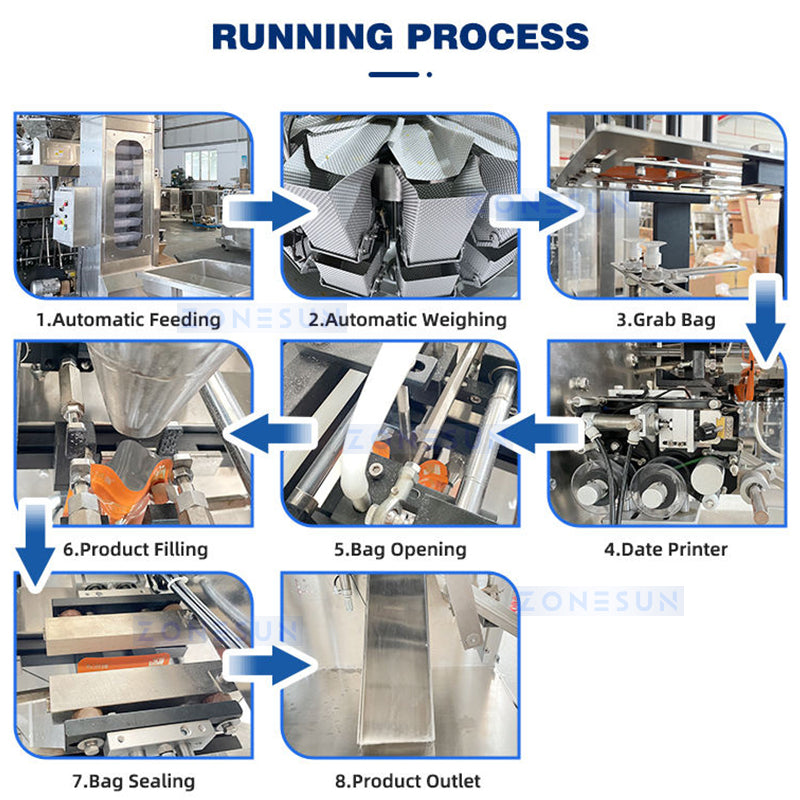

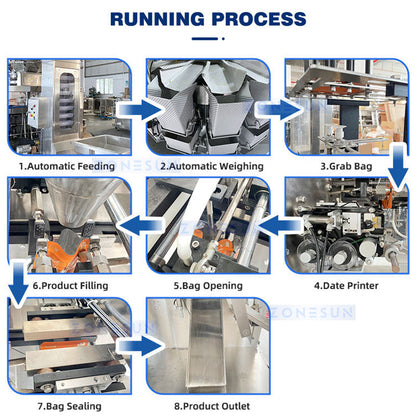

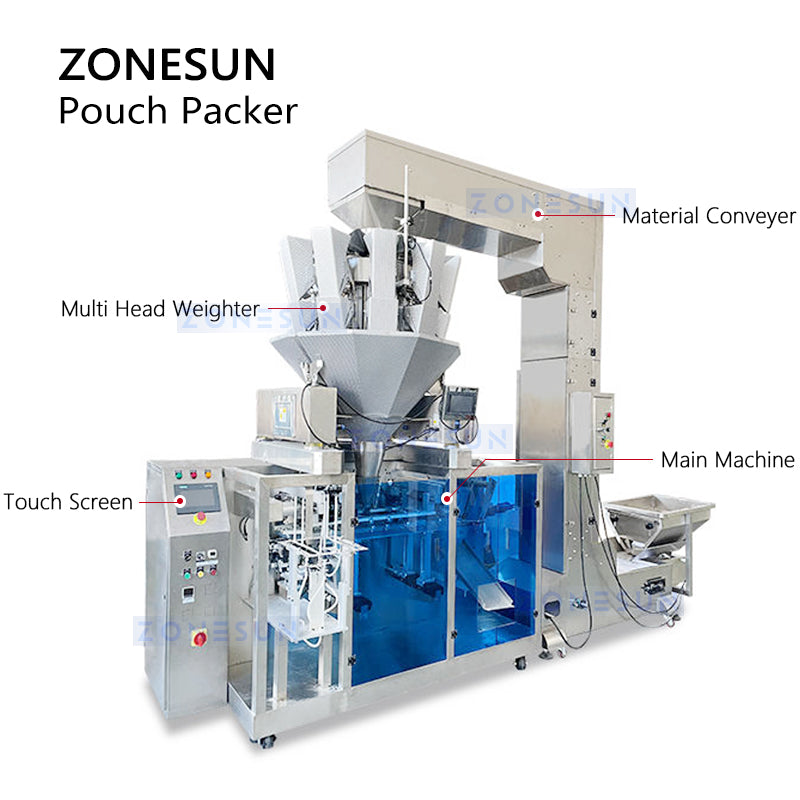

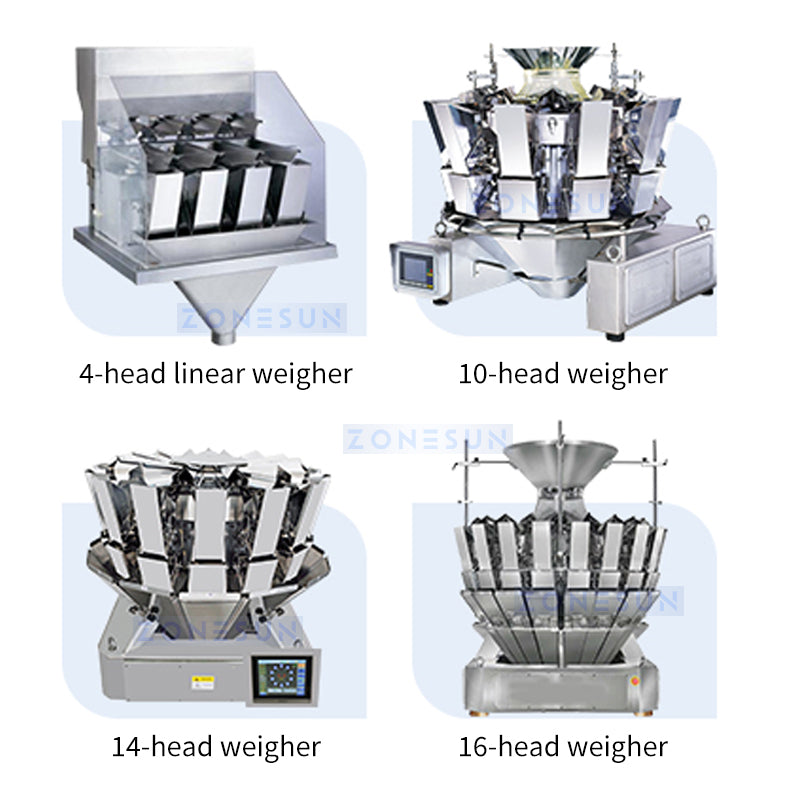

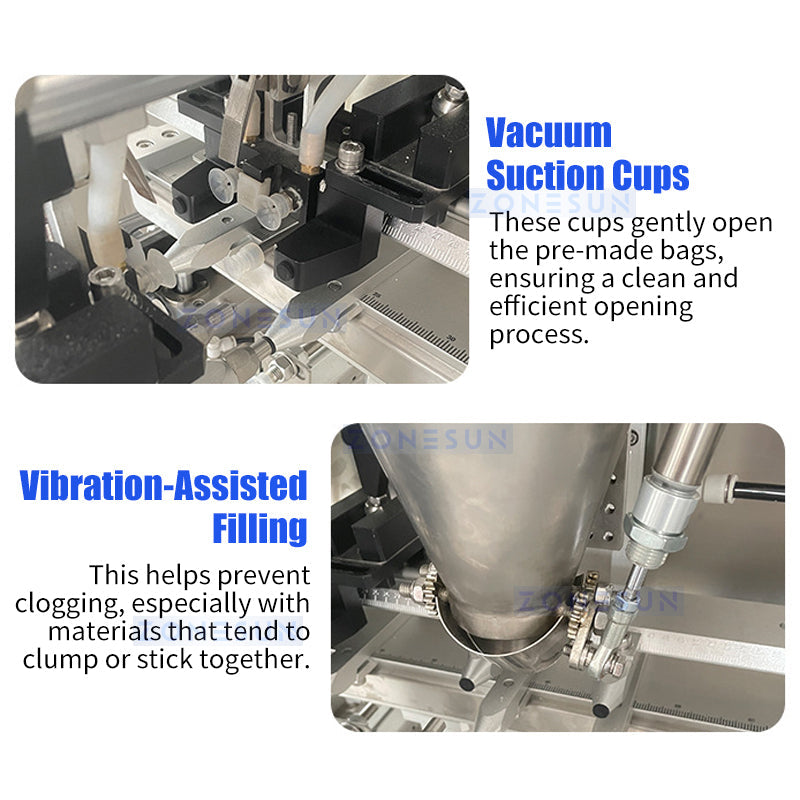

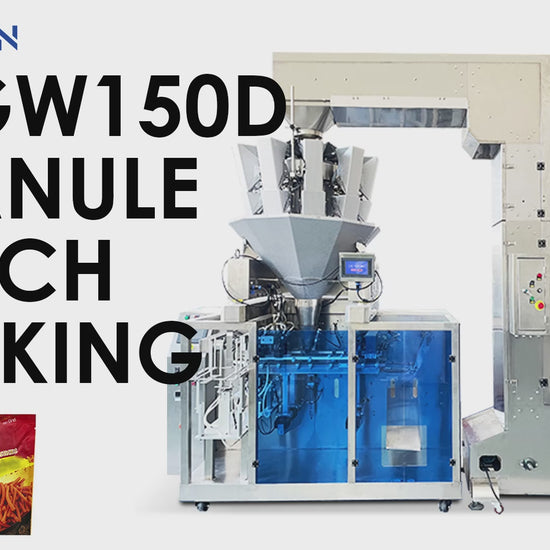

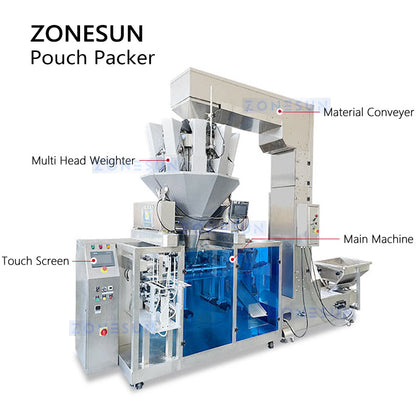

The Zonesun ZS‑GW150D Automated Granular Bagging System is a fully integrated packaging solution for granular, lump, flake, and bar‑shaped solid materials. Combining a Z‑type elevator, multihead weigher, and horizontal form‑fill‑seal machine, it streamlines the entire process from product elevation and precise weighing to clean bag opening, smooth filling, coding, sealing, and final output. Features such as vibration‑assisted filling help prevent clogging, while servo‑driven operation ensures consistent performance. Built for efficiency and reliability, it’s ideal for high‑demand production environments across food, chemical, and industrial sectors.
| Model | ZS‑GW150D | ZS‑GW200D | ZS‑GW250D | ZS‑GW320D |
|---|---|---|---|---|
| Bag Width (mm) | 80 – 150 | 90 – 200 | 150 – 250 | 200 – 320 |
| Bag Length (mm) | 100 – 210 | 110 – 330 | 150 – 400 | 150 – 500 |
| Packing Speed | 20 – 60 bags/min | 20 – 60 bags/min | 10 – 60 bags/min | 10 – 50 bags/min |
| Power Supply | 220 V / 380 V | 220 V / 380 V | 220 V / 380 V | 220 V / 380 V |
| Machine Power | 2.5 kW 50 Hz | 3.5 kW 50 Hz | 3.5 kW 50 Hz | 3.5 kW 50 Hz |
| Gas Consumption | 0.35 m³ | 0.5 m³ | 0.7 m³ | 0.7 m³ |
| Machine Size (mm) | 1700 × 1050 × 1100 | 2150 × 1350 × 1300 | 2450 × 1200 × 1200 | 2800 × 1200 × 1200 |
| Machine Weight | 600 kg | 900 kg | 1100 kg | 1500 kg |
| Application Type Bag | 3‑sided bag, 4‑sided bag, pillow bag, standing bag, M bag, special bag |
| Accuracy | ± 0.5 – 5 g (depending on the material) |
